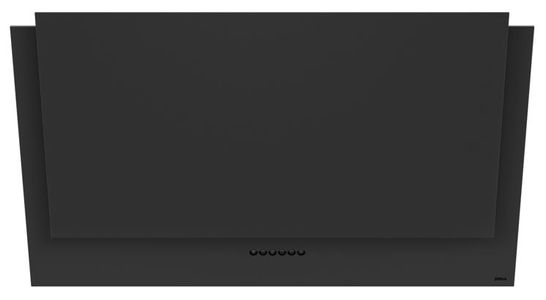

Zephyr Designer Collection Apex 36" Matte Black Glass Wall Mounted Range Hood

Zephyr

Model #:

DAP-M90AMBX

Model #: DAP-M90AMBX
872433
Zephyr
$1,499.00

At a Glance

Product Dimensions 19.75"h x 35.38"w x 19.81"d

Exceptional style, plus the power and performance you’d expect from Zephyr. Featuring white or black glass with matte finish, our Perimeter Aspiration System, easy Capacitive Touch Controls and a recirculating option, the Apex Wall is a hood for today, tomorrow, and beyond. Also includes optional duct cover and remote control.Read More

$1,499.00

Get to know this product.

Product Overview

Product Overview

Perimeter aspiration system

LED lighting

Tri-Level Lighting

Capacitive touch controls

CleanAir function

Multiple color options

Multiple blower options

Range hood only; blower sold separately.

Useful Documents
Specification Sheet
User Manual - Bilingual
Blower Specifications
Duct Cover Extension
Warranty
Specifications

General Specs

Width (in.)35.38
Height (in.)19.75
Duct Size (in.)6" Round, 10" to 8" Round
Depth (in.)19.81
CollectionDesigner Collection
ColorBlack
Manufacturer Warranty1 Year Labor / 2 Year Parts
Color Finish NameMatte Black
Range Hood TypeWall Mounted
ADA CompliantYes
ENERGY STAR CertifiedYes
Outdoor ApprovedNo
Appliance Fit Width (in.)36
Product Weight (lbs.)55
Smart CompatibleNo
Maximum CFM1000
Bulb TypeLED
Grease Filter TypeAluminum Mesh
Filter Indicator LightNo
Sones Rating1.4 - 6
Fan Speed Options3
Height Above Cooktop22 - 34
Height Above Cooktop Centimeter55.88 - 86.36
Voltage120
Amp6.6
Frequency60
Range Hood FeaturesAutomatic Shut Off, Ductless Capable
Noise Level (Sones)Standard - (High)
Ventilation TypeDuctless

Compatible Blower Models

Internal Blower (CBI-290C)200-290 CFM, 1.4-3 sones
Internal Blower (CBI-600A)240-600 CFM, 1.8-6 sones
In-Line Blower (PBN-1000A)500-1,000 CFM
External Blower (CBE-1000)500-1,000 CFM
